Robust construction
Designed to resist kinking and withstand mechanical stress.
Gomax® · Quadra System
The new
Quadra HPSteel
range
Flexible hoses for CO2 (R744) subcritical and transcritical refrigeration units, engineered for temperatures up to +150 °C (+302 °F).
0 barWorking Pressure
0 barBurst Pressure
−45 / +150 °C range
5:1safety factor
Built for demanding CO2 units
Right at the heart of the unit.
Gomax® flexible hoses are engineered to replace rigid copper tubing in industrial air conditioning and refrigeration systems. They help absorb vibration, simplify routing and enable quick installation with no welding or brazing.
Quadra HPSteel extends this approach to the demanding pressure and temperature conditions of CO2 (R744) systems, enabling flexible connections across a wider range of applications:
- Pressure gauges & switches
- Oil return lines
- Suction & discharge lines
- Subcritical & transcritical units

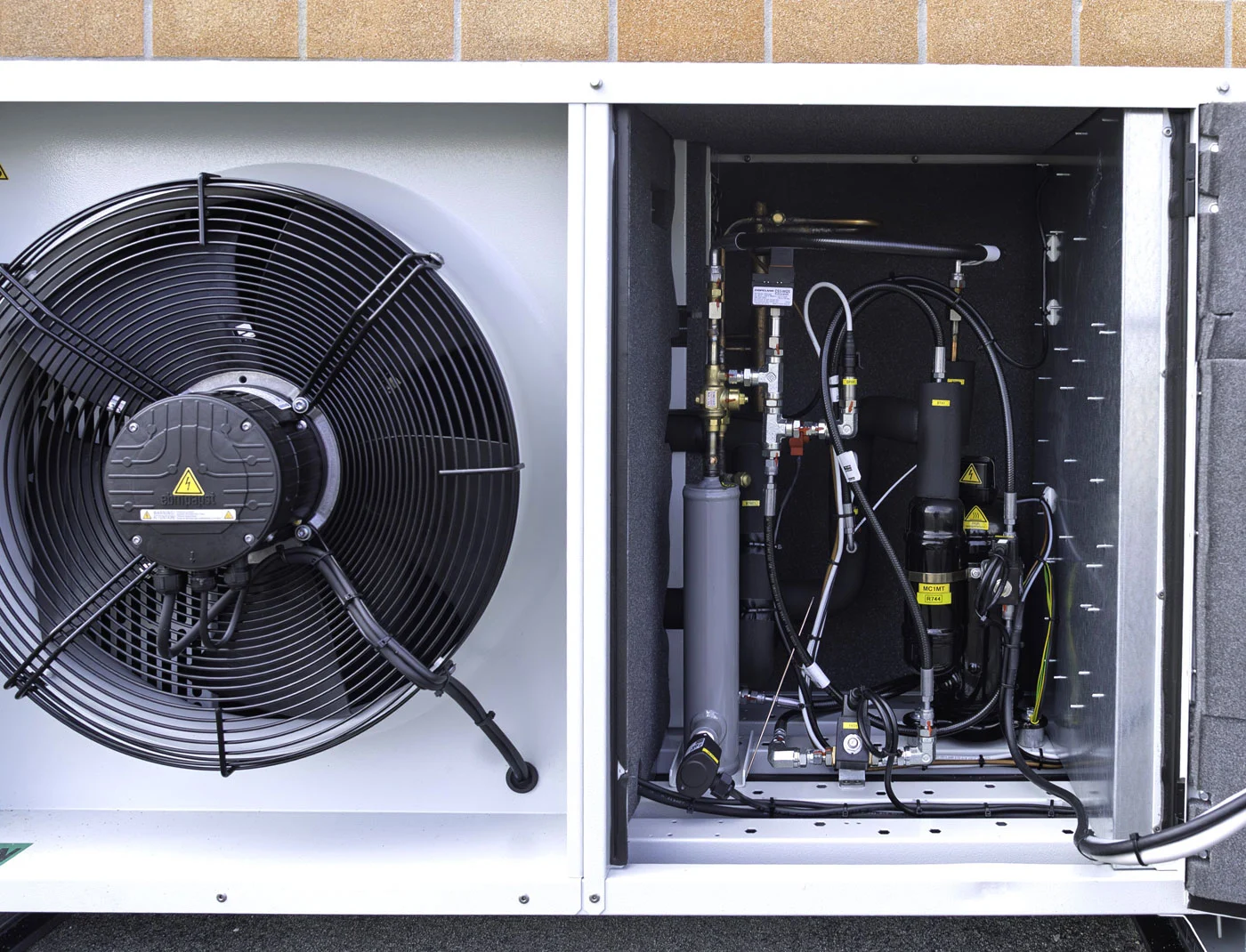

Quadra HPSteel can be installed directly on the compressor discharge and suction lines, becoming an integral part of the refrigeration circuit.
By replacing rigid copper tubing with Quadra HPSteel, the compressor can be virtually isolated from the rest of the system, avoiding the transmission of vibrations to other components.
Features + benefits
Engineered for performance.
High-temperature performance
Inner tube and cover made of a special thermoplastic polymer, designed for continuous operation from −45 °C to +150 °C.
Steel reinforcement
DN6 to DN12 feature high-tensile steel braid for enhanced mechanical strength.
Corrosion-resistant fittings
Carbon-steel fittings with zinc-nickel plating for enhanced corrosion resistance.
Material compatibility
Materials tested for compatibility with R744 and typical POE and PAG oils.
Tested quality
The full range has been tested under demanding CO2 operating conditions to verify long-term performance and reliability.
Quadra HPSteel range
One range. Six sizes.
Select a nominal diameter to explore its construction and technical data.
Part no. 0290

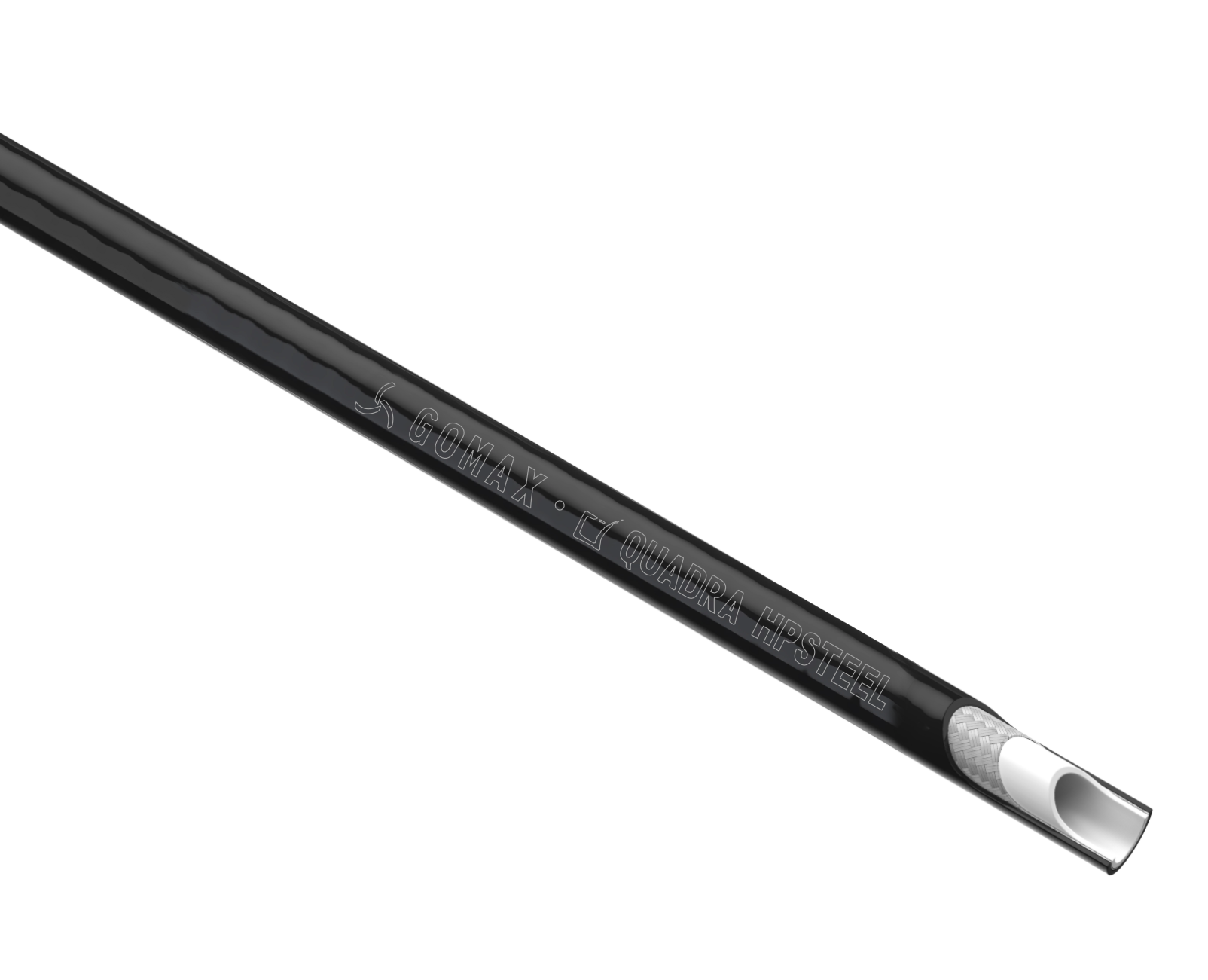

DN2 5/64 in
Equivalent to metal tubing OD 2 mm | 5/64”
Inner diameter2.3 mm0.090 in
Outer diameter6.1 mm0.240 in
Working pressure130 bar1900 psi
Burst pressure650 bar9500 psi
Min. bend radius15 mm0.590 in
Weight30 g/m0.020 lbs/ft
Cover: thermoplastic polymer Reinforcement: synthetic braid Inner tube: high-temperature resistant polymer
Available as factory-made assemblies only. All sizes: −45 °C to +150 °C temperature range and 5:1 safety factor.
Fitting configurations
Configure the connection for your installation.

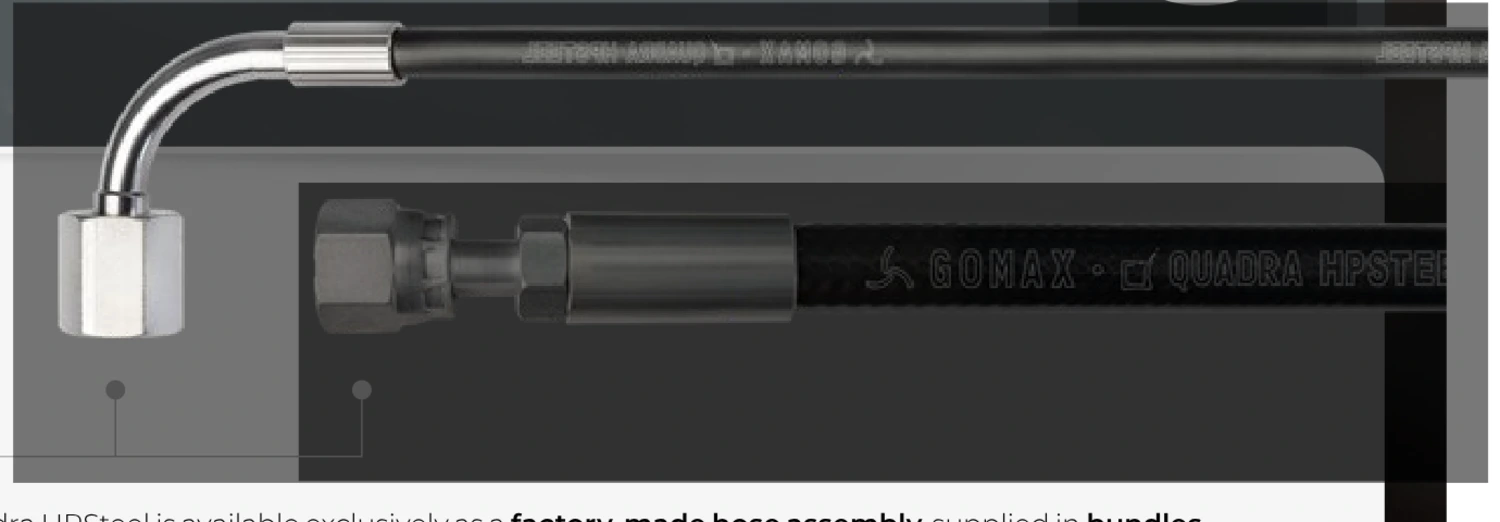

Quadra HPSteel is available exclusively as factory-made hose assemblies, supplied in bundles of 10 pieces. Each assembly can be configured according to specific installation requirements in terms of hose length and fitting combination.
Current selection

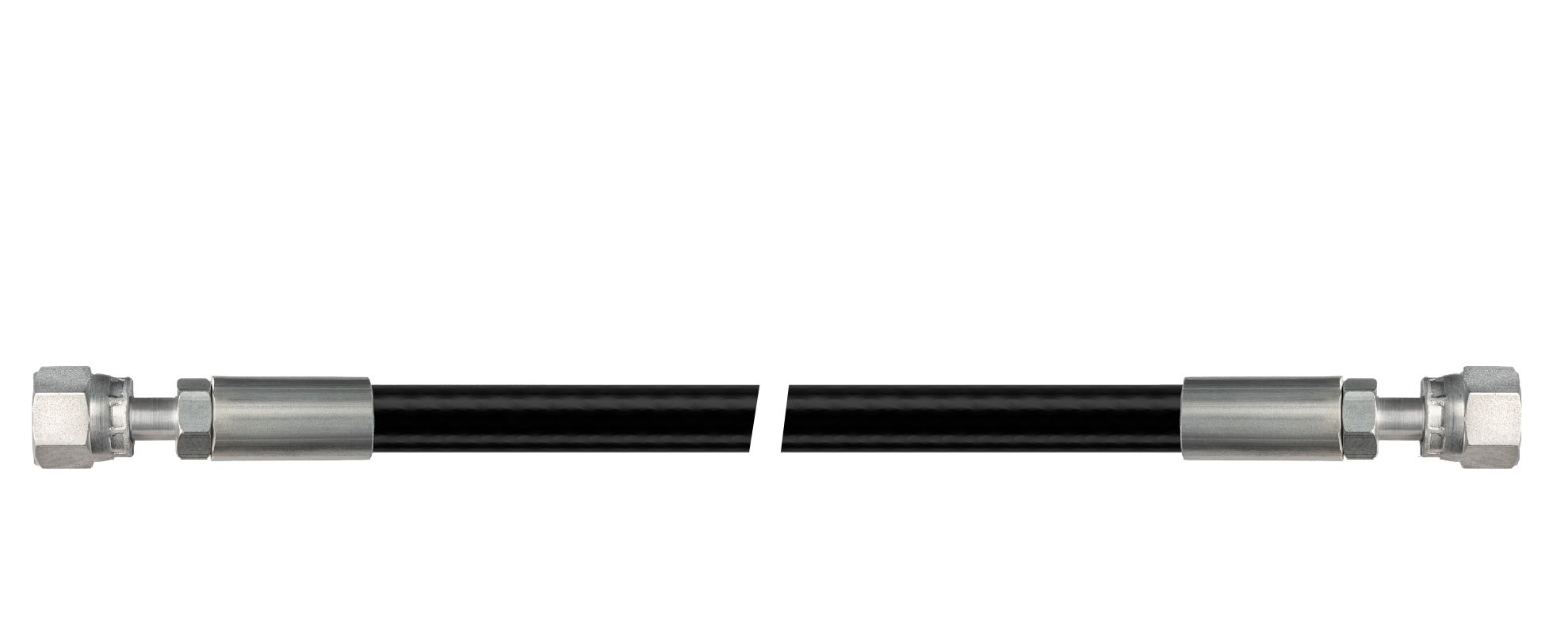

Straight female / straight female
The first three letters of the part number identify the fitting configuration, while the last three digits (XXX) indicate the total hose length in cm, available in multiples of 10 cm (3.94 in). Standard hose color is black.
Quality controls
Tested for the conditions of CO2 (R744) systems.
Quadra HPSteel is tested to ensure its performance under the temperature, pressure and operating conditions of CO2 (R744) refrigeration systems.
Up to00
Up to130 bar1900 PSI
Thermal conditioning
The inner-tube polymer was subjected to thermal conditioning at 150 °C, with no signs of mechanical degradation.
Oil compatibility
Dimensional stability was assessed after extended immersion in POE and PAG oils used in R744 systems, confirming the material’s compatibility.
Impulse testing

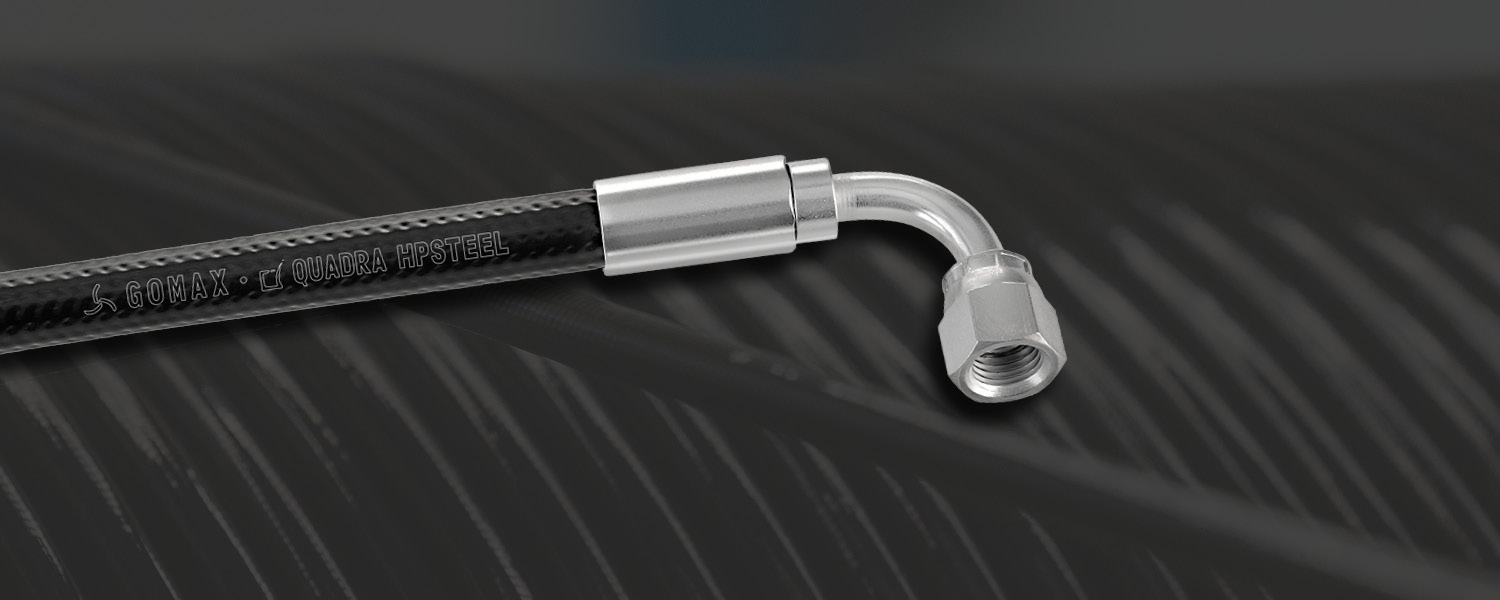

The DN6 hose, bent to its minimum bend radius, was tested with oil at 150 °C and pressure-cycled at 1 Hz and 143 bar, successfully exceeding 250,000 cycles.
Corrosion resistance
A salt spray test, in accordance with UNI EN ISO 9227, showed that zinc-nickel-plated fittings resist oxidation for more than twice the exposure time of standard zinc-plated fittings.
